AWS Standard IP65 Ultrasonic Flaw Detector With Durable Metal Shell
IP65 And AWS Standard Ultrasonic Flaw Detector With B Scan And TCG
Curve Function
Functions & Features:
● Probe automatic calibration
● DAC and AVG are automatically formed, and can be corrected and
compensated
● IP65 standard, with the durable metal shell (oil-proof,
water-proof and dust-proof)
● PC software is available for data analysis, management and
reports printing
● Freely switch to 4 standards (depth D, level P, distance S,
amplitude H)
● Auto-gain and peak memory improve detection efficiency
● Automatically calculate the φ value equivalent defects
● 13 built-in testing standards are available
● Power supply: rechargeable Li-ion battery, standby time more than
15hours
● The width and intensity of launch pulse are adjustable
● AWS standards,B Scan, and TCG curve are available
● 3 years warranty and life-long services.
Application:
Quickly and accurately detection, positioning, evaluation and
diagnosis of various flaws in the work-piece, such as cracks,
welds, blowhole, etc. It Widely used in electric power,
petrochemical, boiler and pressure vessel, steel, military,
aerospace, railway transportation, automobiles, machinery, and
other fields.
Technical Parameters:
| Model | Uee953 |
| Operating Frequency | 0.5 - 20 MHz |
| Scan Range(mm) | 0-10000mm |
| Velocity Range(m/s) | 100～20000 |
| Vertical linearity error | ≤% |
| Dynamic Range | ≥32dB |
| Horizontal linearity error | ≤0.2% |
| Testing sensitivity | ≥62dB (Depth 200mm, Φ2 flat bottom hole) |
| Measuring channel | 500 |
| Storage | 1000 |
| PC Connection | Available |
TCG curve | Available |
B Scan | Available |
AWS | Available |
| Gain Range(dB) | 0-130 |
| Standard Probes | Straight probe: 2.5MHz, diameter 20mm, cable Q9-Q9 Angle probe: 4MHz, 60 degree, 8*9 mm, cable Q9-C5 |
| Dimension | 240×185×55mm |
| Weight | 1.85kg |
| Optional Accessories | Optional probes, Cables, Calibration blocks, Coupling agent |
Standard Configuration:
| Name | Quantity | Name | Quantity |
| Main unit | 1 | PC software | 1 |
| Straight probe | 1 | USB | 1 |
| Angle probe | 1 | Manual | 1 |
| Power adapter | 1 | Certificate | 1 |
| Cables | 2 | Warranty card | 1 |

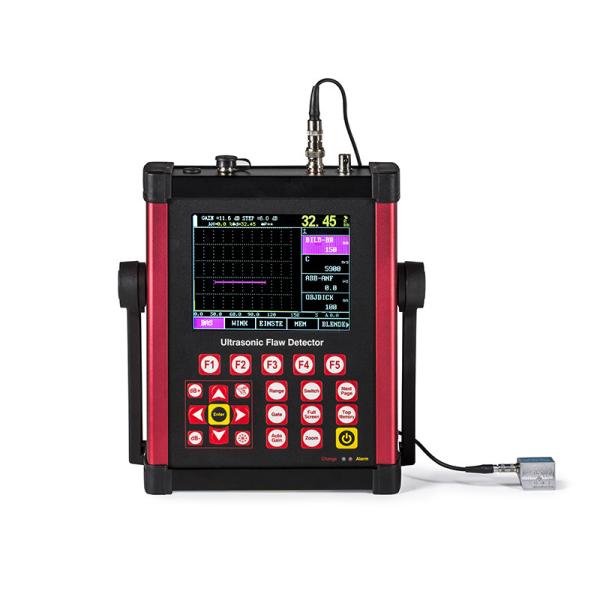

Picture:
Accessories:
